Surface Optics SOC 410 Lidar Reflectometer

Surface Optics SOC 410 Lidar Reflectometer Overview

The Surface Optics SOC 410 Lidar reflectometer provides for measurements of directional hemispherical reflectance (total hemispheric for 20º angle of illumination) reported at the four common laser wavelengths used in LIDAR and ADAS driver-assistance systems. Measurements of specular-included reflectance are made at 850, 905, 940 and 1550nm. The 410 Lidar forms part of the modular 410 family whose concept is for a range of interchangeable measurement heads with a common command module.

The Surface Optics 410 Family

The 410 Lidar forms part of the 410 range of portable reflectometers and emissometers from SOC that are designed for reflectance, solar absorbance and thermal emissivity measurements in the visible to far infrared range. These modular devices feature interchangeable measurement heads and a common command module and generate data of comparable quality to much larger laboratory instruments.

410 Lidar Head for Directional Hemispheric Reflectance (DHR) Measurements

The SOC 410 Lidar provides measurements of directional hemispherical reflectance (total hemispheric for 20º angle of illumination) sampled within within 4 wavebands centred on 850, 905, 940 and 1548nm. These are the common laser wavelengths deployed in LIDAR and ADAS driver assistance systems that are increasingly being fitted to vehicles.

Ergonomic Design

The lightweight pistol-grip design of the SOC 410 is modelled on a battery operated power tool. It is highly portable and allows single-handed use. Simply hold the sample port against the surface to be tested and press the trigger to take the measurement. View results immediately on the touch-screen display. Measurements can be taken on curved surfaces without special jigs or fixtures. The 410 Series measures the reflectance of flat, convex and concave surfaces (max. 150mm & 300mm radius, respectively) with a measurement spot of 6.4mm diameter.

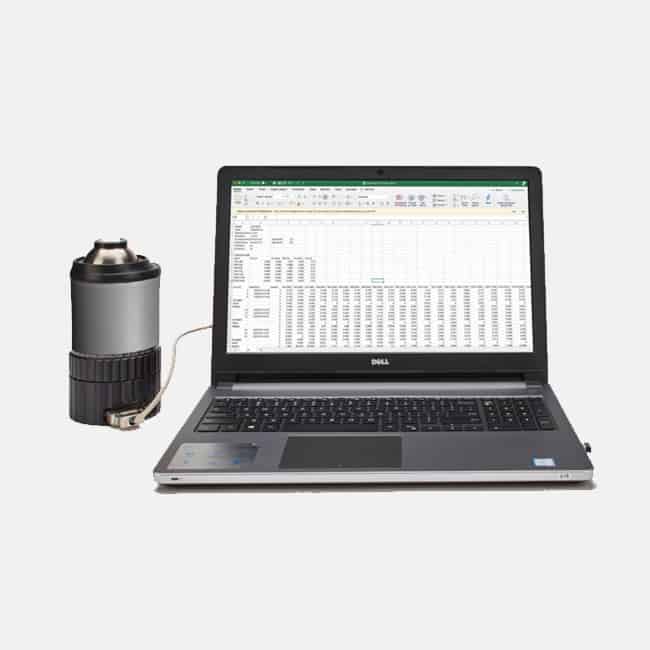

An optional bench-top remote control unit (RCU) is available for the 410-series and operates by remote external control from a customer-supplied Windows PC. The bench-top configuration is ideal for routine QC applications and for installations where the 410 measurement head is mounted on a robot arm.
