Colosus stands for Collimated Optics, Software and Uniform Source and is a hybrid electro-optical system co-developed by Labsphere, Inc. and Santa Barbara Infrared, Inc. intended for broad spectrum camera and image sensor testing. Colosus combines a Labsphere HELIOS integrating sphere uniform light source and a SBIR blackbody source together with collimation optics and precision emissive and reflective target wheels. Colosus provides traceable radiance and irradiance and facilitates the fully automated testing of camera and image sensors over the entire UV to LWIR spectral range, from 300nm to 14μm.

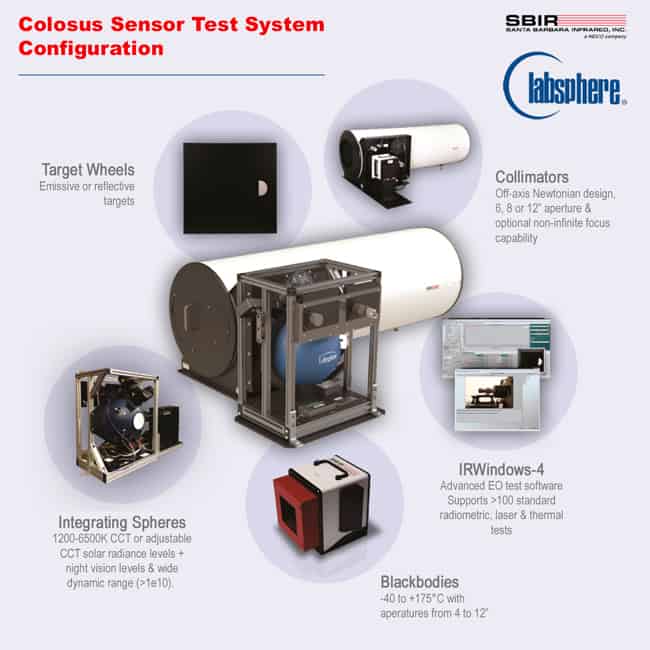

The Colosus sensor test system is offered in both collimated and flood-mode test configurations. Integrating spheres, blackbodies, collimators, target wheels, system peripherals and traceable calibration data are combined and controlled by the SBIR IRWindows™4 automated test software package to provide a single, easy-to-use testing method. Custom test solutions can be designed to achieve specific program requirements.
Target Wheels
• Rugged design
• 6, 12 and 16 position automated wheels
• Laser cut features for precise dimension specifications
• Huge range of precision targets to meet all testing needs
• Emissive or reflective targets
• Custom designs
Integrating Sphere Systems
• HELIOS®-based modular systems sources and materials to suit 0.3-14um range
• 1200K-6500K or adjustable CCT solar radiance levels and spectrums
• Night vision levels
• Huge dynamic ranges (>1e10)
• Absolute traceable calibration
• Monitoring options: broadband, multispectral or spectral
• Colour and tunable spectrum options
• Custom designs for any application
• Off-axis Newtonian designs
• 6”, 8” and 12” apertures
• Optics can be coated with various options to be optimized for specific bands
• Optional non-infinite focus capability
• Custom designs including larger apertures and focal lengths
• Variety of temperatures from -40°C to +175°C+
• Aperture sizes from 4” to 12”+
• COLOSUS systems utilize a 2″ or 3″ aperture target wheel, back-illuminated by either a 4” aperture blackbody or integrating sphere in the standard configuration
• Unparalleled emissivity option for enhanced radiometric control – emissivity > 0.998 via VANTABLACK®S-IR treatment!
• Excellent temporal and thermal stability (mK)
• Uniformity >98%
• Accuracy of 0.010°C
IRWindows™5
• Most advanced E-O software suite available
• Widely used in commercial, government & military establishments
• Core control of all system assets
• Ergonomic, adaptable, easy-to-use GUI
• Operator, developer and programmer modes
• Supports >100 standardized radiometric, laser and thermal tests
• Supports all standard framegrabber formats including Analog, GigE, Camera Link, DVI, CoaXPress, Firewire, HD 720 & 1080i (SMPTE 292M, 296M, 259M, 274M), and more!
• Custom camera and framegrabber support
• SQL database collection of data
• Custom test design and reports
• Custom Designs
