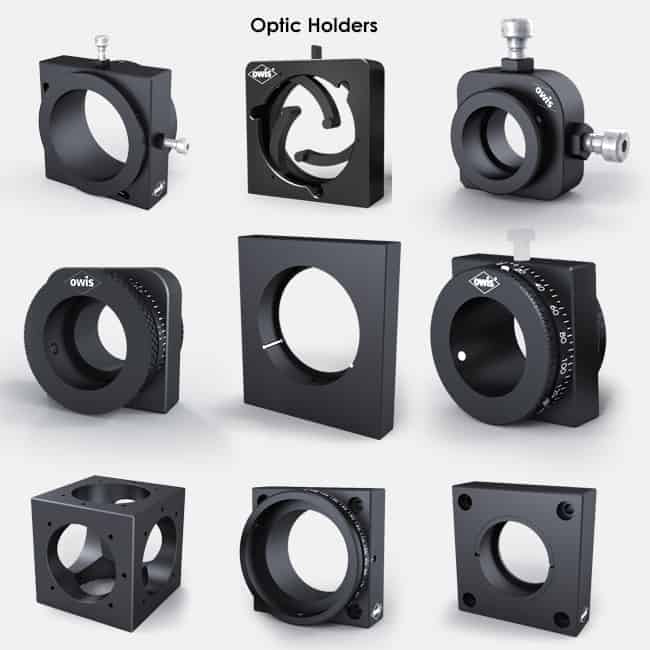

OWIS Opto-Mechanics - Optical Holders

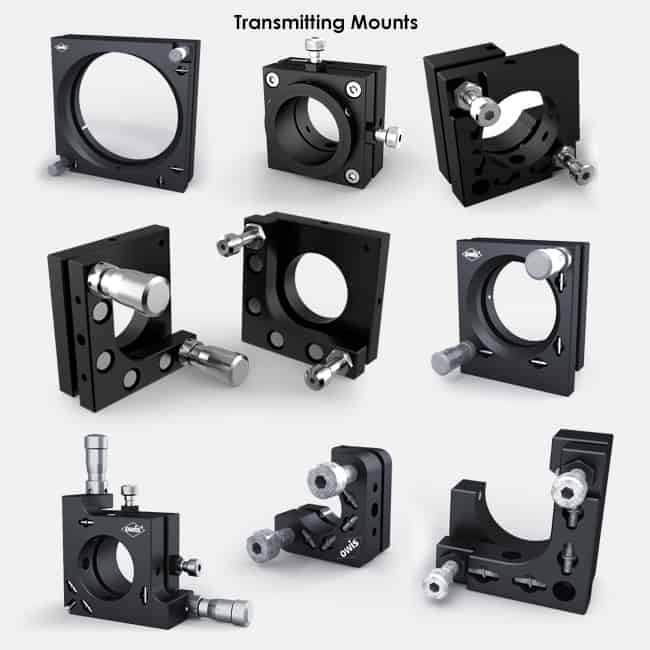

TRANS 40 – Transmitting Mounts, standard

• for use with SYS 40
• with micrometers or finethread screws in direction of optical axis
• 2 retainers for optics with ø 25 mm / ø 25.4 mm (1″)

TRANS 65L – Transmitting Mounts

• for use with SYS 40 and SYS 65
• theta-phi adjustment
• fine-thread screws or micrometers

TRANS 80 – Transmitting Mounts

• for use with SYS 90
• theta-phi adjustment
• direct installation or via a base plate

TRANS 100 – Transmitting Mounts

• for use with SYS 90
• theta-phi adjustment
• for use with SYS 90 directly on slide RT 90-110 (ø 76.2 mm / ø 101.6 mm)

TRANS 25C-D13-FGS -Transmitting Mounts, standard

• for use with SYS 25
• theta-phi adjustment
• Installation on pin or on a slide RT 25

TRANS 40C – Transmitting Mounts with clear edge

• for use with SYS 40
• theta-phi adjustment
• installation on pin or on a slide RT 40

TRANS 40S-XY – Transmitting Mounts with lateral screws

• for use with SYS 40
• XY adjustment with lateral fine-thread screws and theta-phi adjustment
• 2 holes to fix optics with ø 25 mm

TRANS 40T – Transmitting Mounts with disc springs

• for use with SYS 40
• long term stability when vibration occurs
• 2 holes to fix optics with ø 25 mm / ø 25.4 mm (1″)

TRANS 40T-D25-XYZ – Transmitting Mounts with disc springs

• for use with SYS 40
• XY adjustment with lateral fine-thread screws and theta-phi adjustment
• 2 holes to fix optics with ø 25 mm

TRANS 150G

• for use with SYS 90
• sensitive adjustable
• retainer diameter ø 101.6 mm (4″)

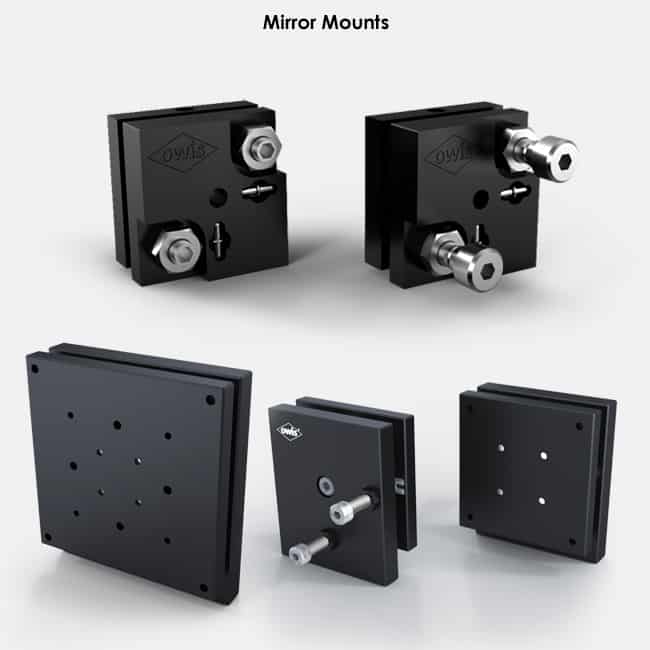

K 25 – Small Mirror Mounts, kinematic

• for use with SYS 40
• with clamping to fix the position
• installation on pin or on slide RT 40

K 50-FGS – Mirror Mounts, kinematic

• for use with SYS 40 and SYS 65
• installation with one M6 or two M4 threaded holes
• installation on pin or on slide RT 65

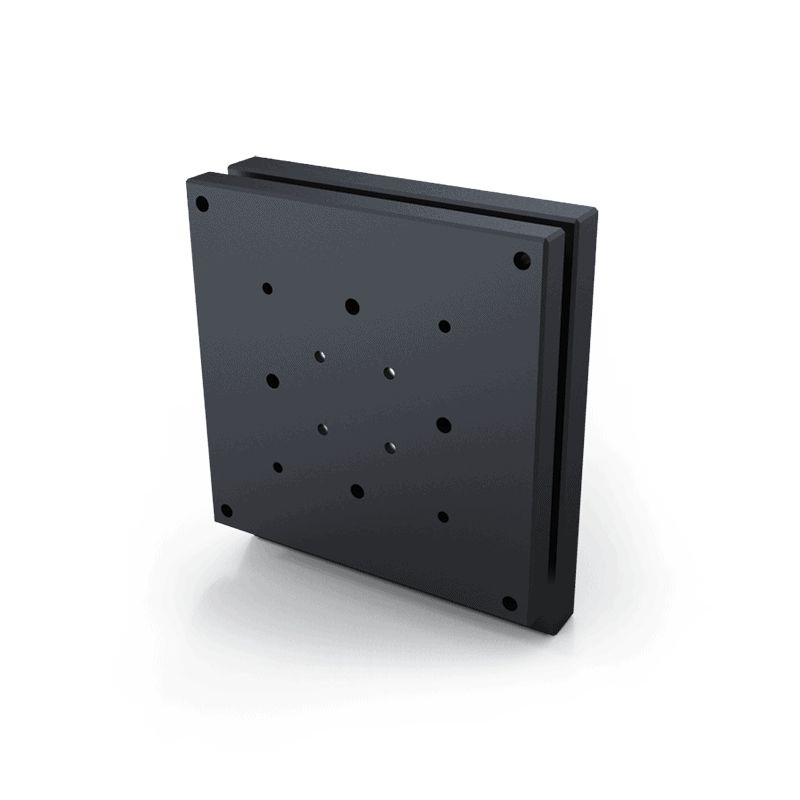

K 80  – Mirror Mounts, kinematic

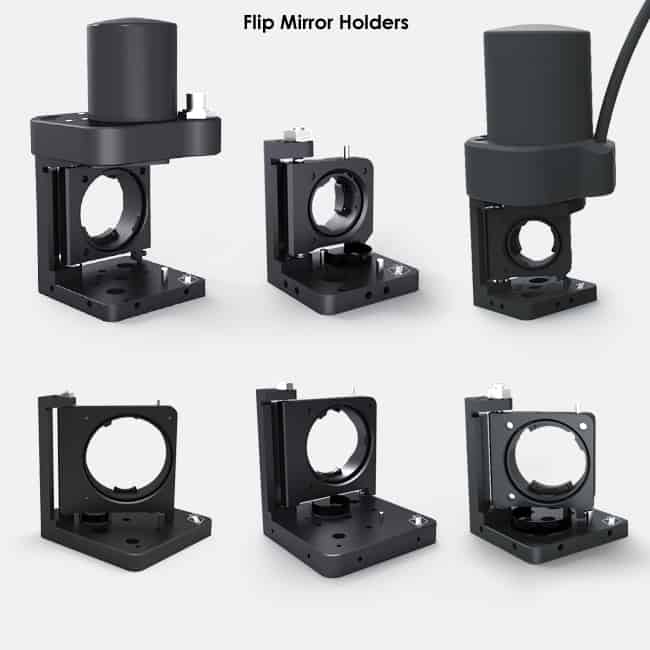

KSH 25 – Flip Mirror Holders

• for use with SYS 25
• for optics with ø 12.5 mm / 12.7 mm (0.5″) and a thickness of 3 mm
• installation on two slides RT 25 or on pin

KSH 40 – Flip Mirror Holders

• for use with SYS 40
• for optics with ø 25 mm / 25.4 mm (1″) and thickness of 5 mm
• installation on two slides RT 40 or on pin

KSH 65 – Flip Mirror Holders

• for use with SYS 65
• for optics with ø 38.1 mm (1.5″) and a thickness of 6 mm
• installation on two slides RT 65 or on pin

KSH 90 – Flip Mirror Holders

• for use with SYS 90
• for optics with ø 50 mm / 50.8 mm (2″) and a thickness of 10 mm
• installation on slide RT 90 (with adapter plate) or on pin

KSHM 25 – Flip Mirror Holders, motorised

• for use with SYS 25
• for optics with ø 12.5 mm / 12.7 mm (0.5″) and a thickness of 3 mm
• DC geared motor, mechanical limit switches

KSHM 40 – Flip Mirror Holders, motorised

• for use with SYS 40
• for optics with ø 25 mm / 25.4 mm (1″) and a thickness of 5 mm
• DC geared motor, mechanical limit switches

KSHM 6 – Flip Mirror Holders, motorised

• for use with SYS 65
• for optics with ø 38.1 mm (1.5″) and a thickness of 6 mm
• DC geared motor, mechanical limit switches

KSHM 90 – Flip Mirror Holders, motorised

• for use with SYS 90
• for optics with ø 50 mm / 50.8 mm (2″) and a thickness of 10 mm
• DC geared motor, mechanical limit switches

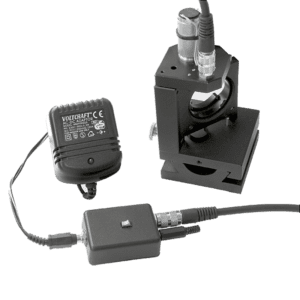

NG-E02  – Control Unit for Flip Mirror Holders with TTL Input

• control unit for flip mirror holders
• mating plug for TTL input
• switch for manual operation

FV 40-XY – XY Fine Adjustment Stages

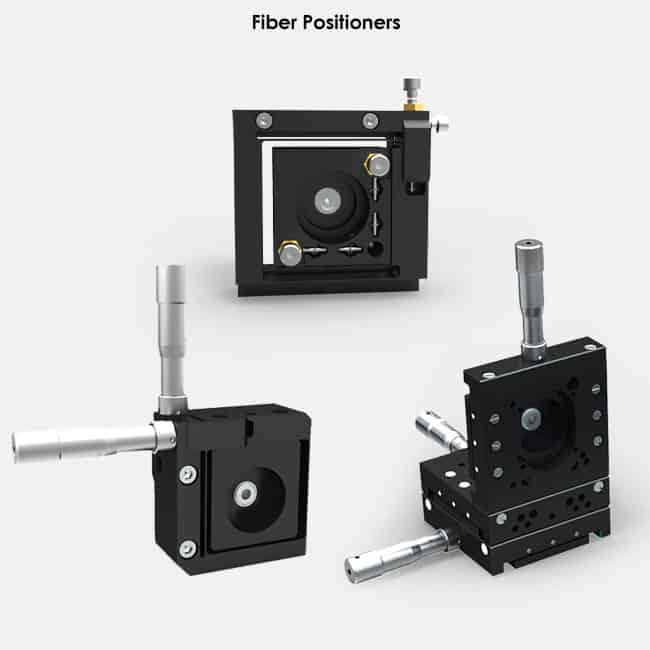

FAPO 40 – XY Fibre Positioner

• for use with SYS 40
• very sensitive adjustment of X and Y
• fine-thread screws or micrometers, SMA or FC adapter

Datasheet

FAPO 50-MS10-FC – XYZ Fibre Positioner

• highly sensitive adjustment of X, Y and Z axis
• micrometers MS 10
• FC adapter (optionally SMA adapter)

Datasheet

FAPO 65 – XYθφ Fibre Positioner
