Precision in Motion: Reliable OWIS Shutters for Your Photonics Needs

For regulating aperture sizes, Owis offer a few different options. Adjustable iris diaphragms for circular apertures are available with either single or dual lamella sets in both manual and motorised variants. Slits with four independently adjustable lamellas are available for rectangular aperture adjustment. Additionally, a range of pinholes and drilled apertures with aperture sizes from 5 µm up to 4000 µm are available.

For accessories please refer to product datasheets.

IRIS DIAPHRAGMS
SLITS
PINHOLES & DRILLED APPERTURES
RESOURCES

Iris Diaphragms

IB-D22 – Iris Diaphragms

for use with SYS 40
aperture 1.0 mm up to 14.0 mm
installation on SYS 40 optic holders or cubes

IB-D54-0-37 – Iris Diaphragms, totally closing

for use with SYS 65
totally closing, aperture 0 mm up to 37 mm
installation on slide RT 65 or pin

IBM 65 – Iris Diaphragms, totally closing and motorised

for use with SYS 65
aperture from 0 up to 35 mm
step or DC servo motor (with gear / encoder), with Hall-effect limit switches

Slits

SP 40 – Slits

for use with SYS 40
aperture max. 7 x 7 mm
independently adjustable lamellas

SP 60 – Slits

for use with SYS 65
aperture max. 12 x 12 mm
independently adjustable lamellas

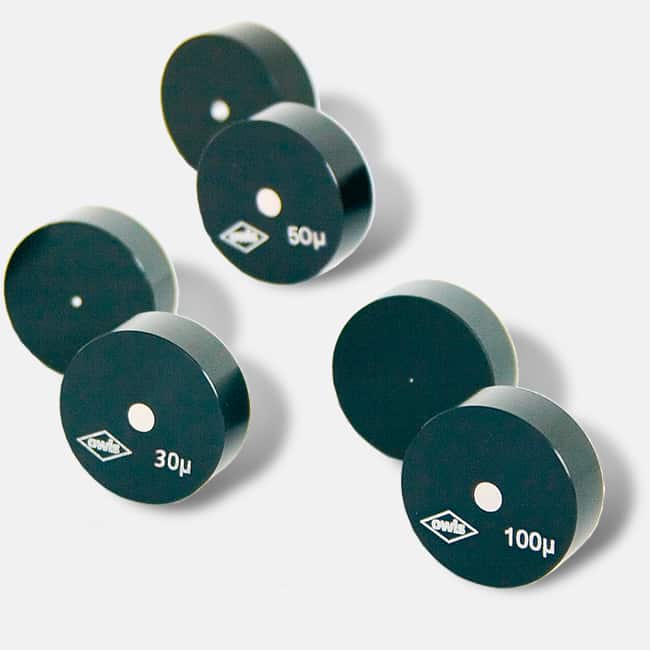

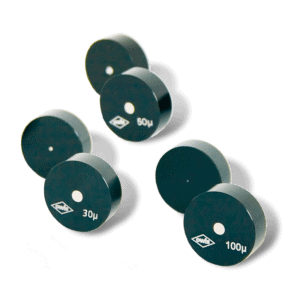

Pinholes and Drilled Apertures

LB xx-D5-G25 – Pinholes and Drilled Apertures

centred
with aperture from 5 μm up to 80 μm
mountable in OH 40-D25

TB Bxx-G25 – Pinholes and Drilled Apertures

centred
with apertures from 500 μm up to 4000 μm
mountable in OH 40-D25

Catalogues

*Products marked with can be customised for vacuum applications.
