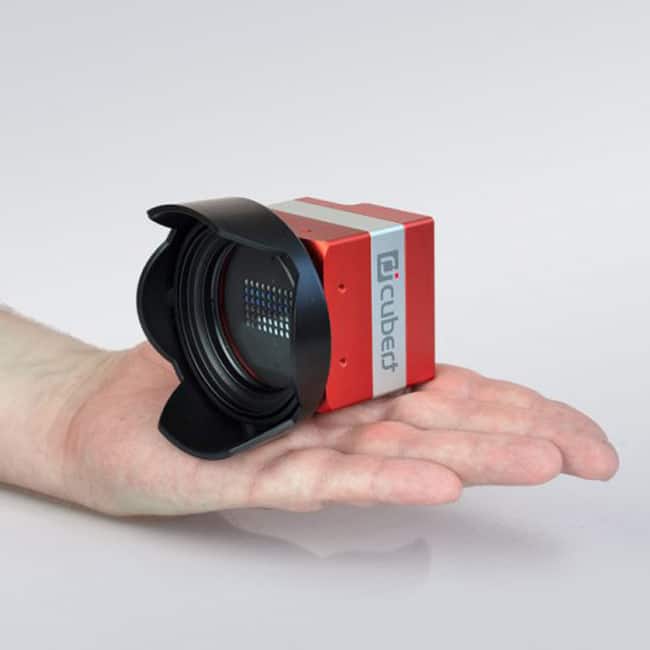

Cubert ULTRIS X20 High Resolution "Snapshot" Hyperspectral Imager

High speed & high resolution spectral imaging from Cubert

Compared with the FireflEYE multipoint spectrometer, the ULTRIS is based upon a 20 Megapixel Ultra-HD CMOS sensor with “light field” sensing (see Tech Note right). This makes it the highest resolution snapshot hyperspectral imager. It has a native resolution of 410×410 pixels, resulting in an impressive 168,100 spectra, each with 164 spectral bands covering 350-1000nm, taken in a single snapshot.

KEY FEATURES
SPECIFICATIONS
AI SOFTWARE
APPLICATIONS
RESOURCES

Key Features of Cubert ULTRIS X20

Snapshot hyperspectral imaging
Video frame rate, no moving artifacts (6 fps)
Full frame images in the VNIR, 350–1000nm
164 spectral channels
Spectral resolution of 4nm
Spatial resolution of 410 x 410 px spectral (168,0100 spectra per cube)
Compact & light weight: 0.35kg (standard IP40 housing)
Industrial (IP65) and waterproof (IP68) housing options

Bringing Light Field Technology to Hyperspectral Imaging

The Cubert ULTRIS breaks new ground as the first hyperspectral imaging camera that is based on “light field technology”. The camera features an Ultra-HD CMOS sensor with 20 MP, making it the imaging spectrometer with the world’s highest available resolution. The camera provides a native image resolution of 400×400 px with 164 spectral channels, continuously covering the wavelength range from 350 to 1000nm. The ULTRIS records an object with a multitude of images, each with its own optical bandpass filter with different centre wavelength. This is made possible by combining a continuously variable bandpass filter with a lenslet array. Applying this concept to the UHD sensor, 168,100 spectra are acquired simultaneously.

Available in three housings

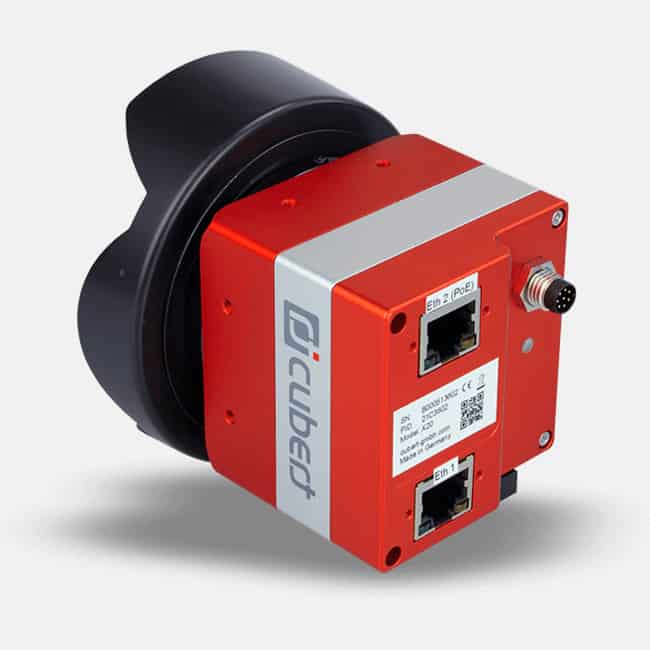

Standard lightweight housing IP40 – Weighing less than 350g, the camera is even lighter than the established FireflEYE 185, making it perfect for deployment on a UAV
Industrial housing IP65 –To meet the requirements of harsh industrial environments. a special rugged, robust housing is available, ensuring optimal protection

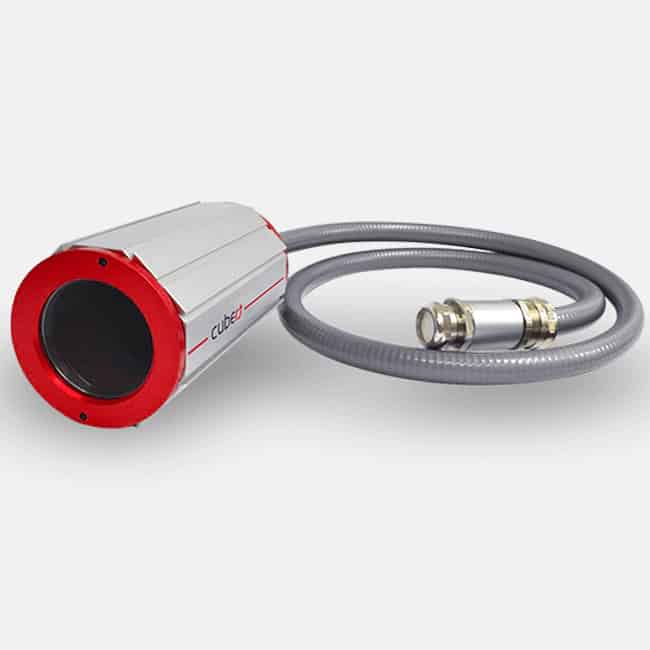

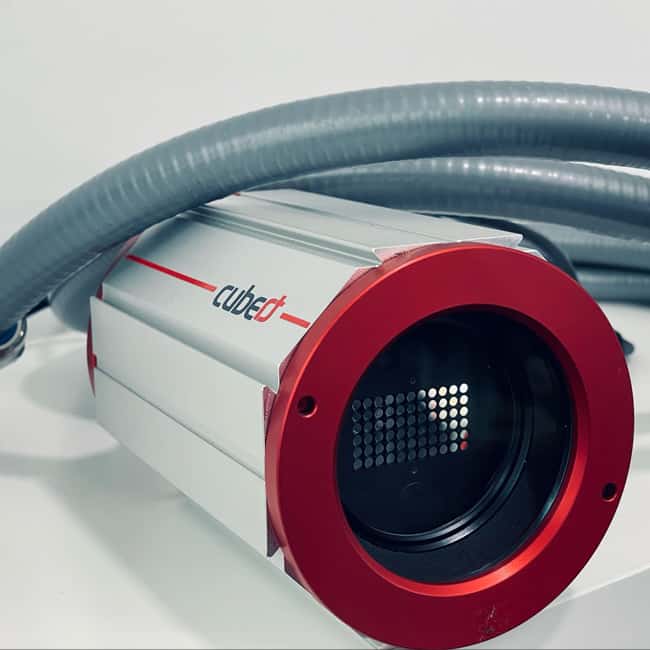

Waterproof housing IP68 – Upgrade the ULTRIS X20 to IP68 and use it underwater to a depth of 10m for 10h

Specifications of Cubert ULTRIS X20

Technology	Light Field
Wavelength Range	350 – 1000 nm
Spectral Bands	164
Spectral Sampling	4 nm
Spectral Resolution (FWHM)	Constant 10 nm
Spatial Resolution	410 x 410 pixel
Total Spectra / Image	168 000
Total Data Points / Cube	27 Million
Data Depths	12 bit
Readout	Global shutter
Max Frame Rate	8 Hz
Integration Time	0.1 – 1000 ms
Field of View (FOV)	35°
Power Consumption	8 W
Data Link	1-2 GigE
Weight	350 g
Size	60 x 60 x 57 mm

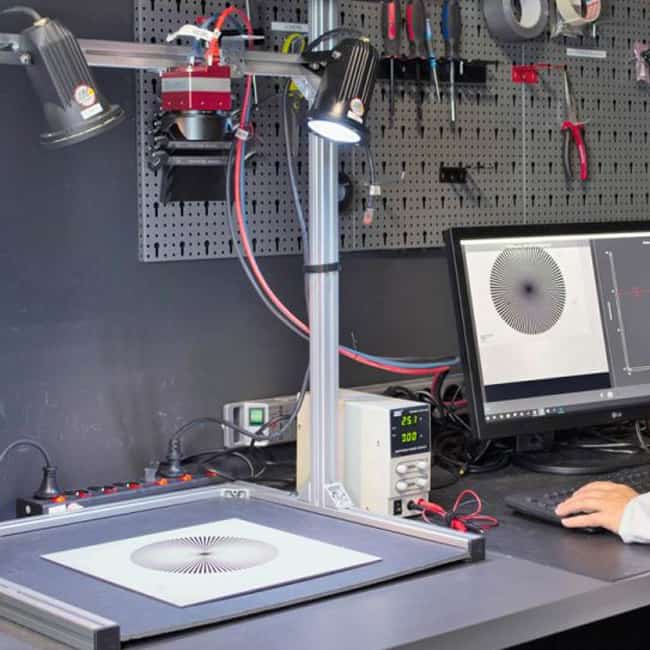

CUVIS AI: Intelligent Hyperspectral Imaging for Advanced Applications

CUVIS AI revolutionises hyperspectral imaging by combining cutting-edge technology with practical applications across diverse industries. From ensuring product quality in food processing to monitoring vegetation health from the air, CUVIS AI addresses complex challenges with precision and efficiency.

Key Features

Real-Time Analysis: Experience the power of real-time data acquisition and analysis, enabling precise and efficient workflows.
Customisable Settings: Adjust critical parameters like integration time with auto-exposure for optimal results and fine-tune the frame rate to match your specific application requirements.
Multiple Operating Modes: Capture in video mode for continuous monitoring, single-shot mode for precise measurements, or use the external trigger for UAV and semi-automated systems.
Distance Calibration: Exclusive to our light field cameras, this feature optimises focus and alignment, even without relay optics.

Advanced Processing Tools

CUVIS AI provides robust tools for advanced processing directly within the interface:

User Plugins: Utilise specific imaging needs, such as RGB True Colour, CIR, and Pseudo Colour Imaging.
Custom Spectral Indices: Calculate and display indices tailored to your unique applications.
Live Classification Tools: Apply tools like the Spectral Angle Mapper (SAM) for real-time identification and categorisation.

Seamless Integration

CUVIS AI integrates smoothly with all Cubert cameras, ensuring compatibility across a wide range of systems:

Powerful SDK: Compatible with Python, C++, and C#, providing full control over acquisition, processing, and customisation.
External System Support: Standard triggers and robust connectivity options for seamless operation in various environments.

Real-World Applications

Explore the transformative power of CUVIS AI through practical use cases:

Foreign Object Detection: Enhance food production safety by identifying contaminants invisible to traditional imaging.
Blood Oxygenation Monitoring: Visualise blood flow and oxygen saturation in real-time for medical applications.
Security Applications: Detect and monitor unique spectral signatures for verifying authenticity and tracking items.

CUVIS AI is designed to simplify the complexities of hyperspectral imaging while providing powerful tools for real-time data acquisition and analysis. Whether you’re working in research or industry, CUVIS AI gives you full control over your imaging processes, enabling precise and efficient workflows.

Applications of Cubert ULTRIS X20 cameras and research papers

Aerial Mapping: Ideal for UAV-based mapping, allowing for image analysis within minutes after landing or even in real-time.
Food Quality: Enables contact-free analysis of food quality on processing lines, making it suitable for complex analysis tasks in the food industry.
Biomedical Imaging: Supports physicians with advanced imaging information, adding another dimension of image analysis for medical applications.
Scientific Research: Provides high spectral resolution in the VNIR range, making it ideal for precision and real-time data capture in various scientific fields.
Environmental Monitoring: Effective for monitoring vegetation health, water quality, and other environmental parameters.
Industrial Inspection: Useful for non-destructive testing and inspection in various industrial applications.
Cultural Heritage Preservation: Assists in the analysis and preservation of artworks and historical artifacts through detailed spectral imaging.
Pharmaceuticals: Supports the analysis and quality control of pharmaceutical products.
Remote Sensing: Effective for environmental monitoring, agriculture, and forestry applications, providing detailed spectral data for analysis.
Surveillance and Security: Enhances surveillance capabilities with detailed spectral imaging for security applications.
