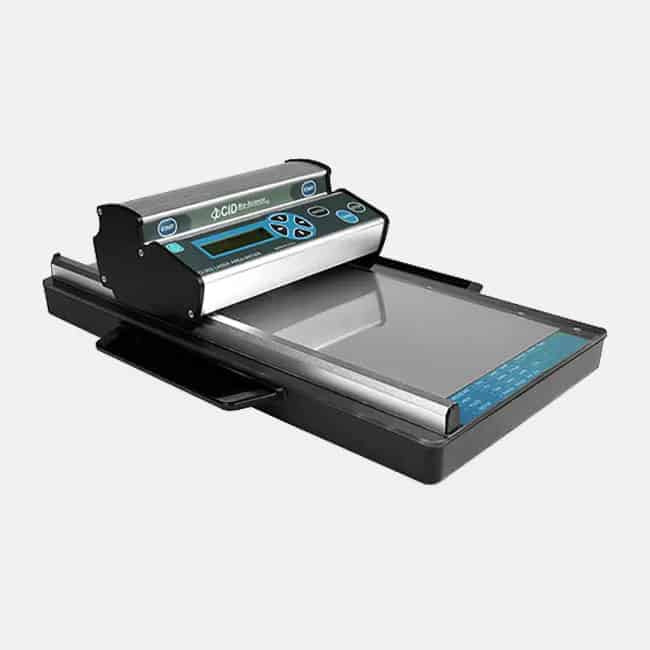

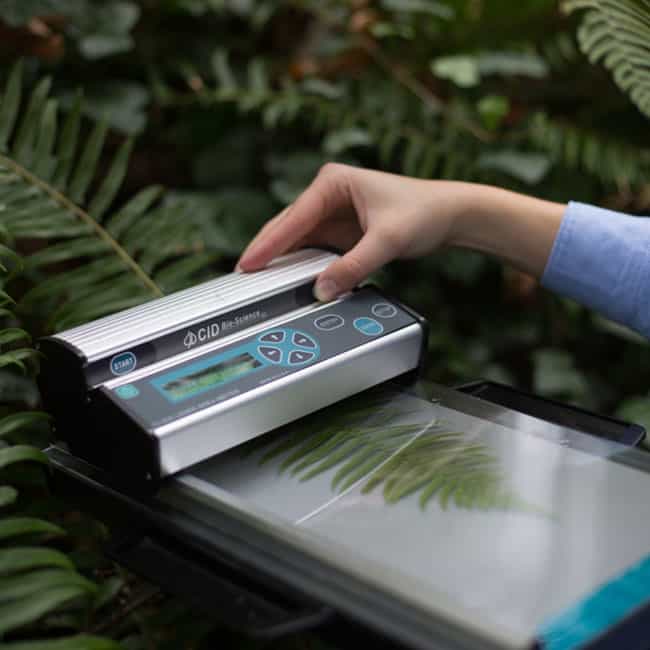

The CI-202 Portable Laser Leaf Area Meter by CID Bio-Science is a versatile tool designed for precise leaf area measurements in various applications. It is widely used in plant physiology to analyse changes in leaf shape and size, aiding in understanding plant functions.
In forestry and environmental research, the CI-202 allows non-destructive measurements, enabling researchers to collect essential data without disturbing natural habitats. Agronomists utilise this tool to optimise crop production by tracking crop health in response to environmental and nutritional changes. Additionally, the CI-202 is valuable in laboratory and field studies for measuring leaves, needles, and seeds, providing accurate data for statistical analysis. Its portability and ease of use make it an essential instrument for ecological studies, phenotyping, horticulture, climate research, and educational purposes.
Key Features of CI-202 Laser Leaf Area Meter
- Measures area, length, width, and perimeter and calculates shape factor and ratio
- Non-destructive and versatile
- Flattens curled leaves to provide precise measurements
- Resolution of .01cm²
- Simple, straight-forward operation
- Stores up to 8,000 single measurements
- Lightweight and self-contained instrument with built-in data logger and LCD display
- Rechargeable battery
- USB port transfers data to computer and charges the device as needed
- No user calibration required
- Includes operational manual and hard-shell carrying case
Specifications of CI-202 Leaf Area Meter
Measuring Thickness | 1.5 cm maximum |
Measuring Width | 15 cm maximum |
Measuring Length | 36 cm |
Scanner | 670 nm laser |
Resolution | 0.01 cm2 |
Accuracy | ±1% for samples >10 cm² |
Interface | USB 2.0 |
Memory Size | 8,000 measurements |
Dimensions | 38.5L x 29W x 12.5H cm |
Weight | 1,500 g |
Display | 16 characters x 2 lines LCD |
Scanning Speed | 200 mm/second |
Battery | 7.2 volt rechargeable NiMH |
Battery Capacity | Over 250 scans per charge |
Operating Temperature | 0-50 °C |
Applications of Laser Leaf Area Meter CI-202
- Plant Physiology: Analysing precise leaf area measurements to track and relate changes in shape characteristics to physiological functions
- Forestry and Environmental Research: Taking non-destructive measurements to collect essential data without disturbing the environments being studied
- Crop Research and Agronomy: Optimising crop production by tracking crop health in response to environmental and nutritional changes
- Laboratory and Field Studies: Measuring virtually any type of leaf, needle, or seed in both controlled and natural settings
- Statistical Analysis: Storing and exporting data for further statistical analysis to support research findings
- Ecological Studies: Collecting data on leaf area to understand plant interactions within ecosystems and their responses to environmental changes
- Phenotyping: Measuring leaf traits to support plant breeding programs and genetic studies
- Horticulture: Monitoring plant health and growth in nurseries and greenhouses to optimize care and cultivation practices
- Climate Research: Assessing the impact of climate variables on leaf morphology and plant health
- Educational Use: Providing a hands-on tool for teaching plant science and conducting field experiments
