NIREOS TRICLOPS FT Spectrometer

Ultrabroadband FT Spectrometer 400 - 4500 nm

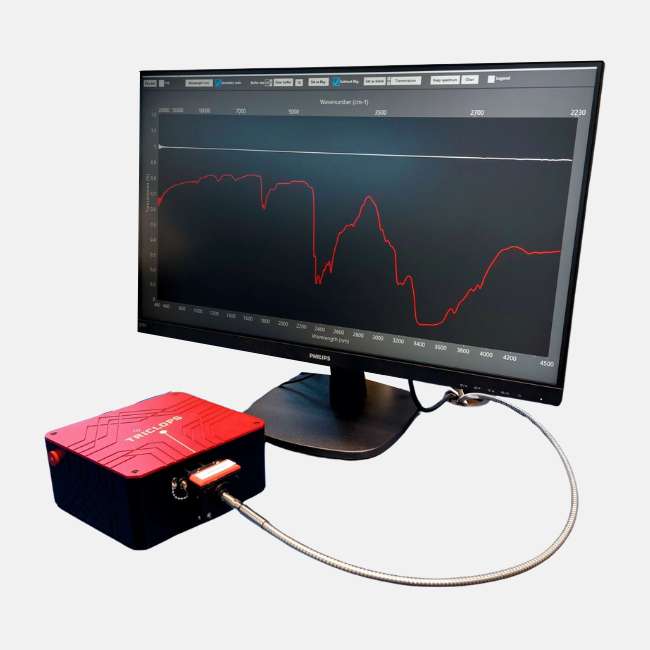

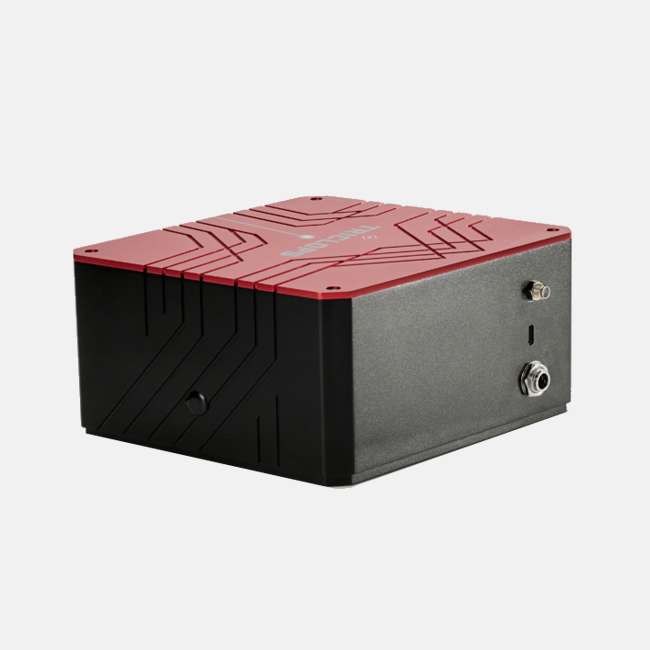

TRICLOPS is a compact and rapid scan VIS-NIR-SWIR-MIR spectrometer.

Discover the power of precision with TRICLOPS spectrometer that utilises patented time-domain FT detection technology. TRICLOPS offers unparalleled accuracy in monitoring emission spectra and measuring absorption, transmission, or reflectance spectra.

Key features include broadband spectral coverage, high spectral resolution, adjustable and fast refresh rates, and high sensitivity and throughput. With light input options in free space or fiber coupled, and a user-friendly software interface, TRICLOPS is perfect for applications such as light source monitoring, materials characterisation, and optical coating analysis.

Need Assistance or Pricing?

Key Features of the TRICLOPS Spectrometer

  • Broad Spectral Coverage: Operates across a wide range from 400 to 4500nm
  • Fourier Transform Technology: Utilises time-domain Fourier Transform detection for high precision in monitoring emission spectra
  • High Spectral Resolution: Offers a spectral resolution of 10 cm⁻¹
  • Versatile Light Input: Can accept light input either in free space or fiber-coupled
  • Compact and Lightweight: Weighs only 1.5 kg and has dimensions of 180 × 160 × 55 mm, making it highly portable
  • User-Friendly Interface: Features a USB-C connection and is compatible with Windows 10/11 OS
  • Applications: Suitable for various applications including materials characterisation, optical coating measurement, and monitoring the emission of light sources
  • Non-Destructive Testing: Ideal for industries like dairy, textiles, and plastics for non-destructive and rapid analysis

Specifications of the TRICLOPS Spectrometer

Wavelength range400 – 4500 nm
Spectra collection rate0.5 – 3 Hz
Spectral resolution10 cm⁻¹
Light input methodFiber-coupled or Collimated*
Fiber coupled inputFiber core Ø ≤ 1 mm, NA = 0.33 (f/1.5)
Collimated input10 mm Ø aperture
PhotodetectorsSi, InGaAs, 2-stage TE-cooled PbSe
InterfaceUSB-C 2.0
Dimensions180 × 160 × 55 mm
Weight1.5 kg
SoftwareWindows 10/11 OS
GUI and API available

*Switchable via software

Examples of Applications of the TRICLOPS Spectrometer

  • Materials Characterisation: Analysing the properties of different materials, such as plastics and textiles
  • Optical Coating Measurement: Measuring the thickness and uniformity of optical coatings
  • Light Source Emission Monitoring: Monitoring the emission spectra of various light sources with high precision
  • Non-Destructive Testing: Ideal for industries like dairy, textiles, and plastics for rapid and non-destructive analysis
  • Dairy Products Characterisation: Quantifying fat content in milk and other dairy products
  • Textile Fabrics Classification: Identifying different types of fabrics such as wool, cotton, and polyester in real-time
  • Detection of Barrier Films in Laminated Plastics: Quality control in the plastics industry to detect and characterise barrier films
  • Olive Oil Adulteration Detection: Detecting and quantifying adulteration in olive oil

Datasheets

TRICLOPS Spectrometer Brochure
