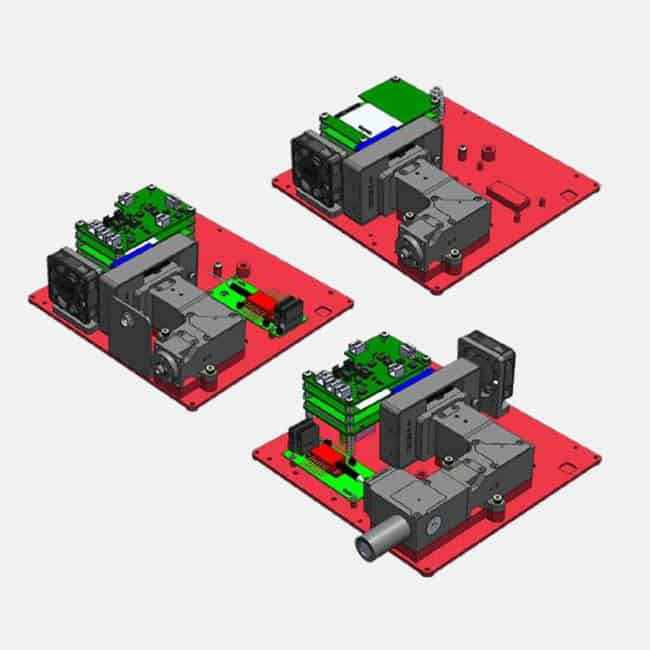

All the performance that you expect from a high performance f/1.3 Wasatch spectrometer, but distilled to the essentials and integrated to reduce cost & footprint while adding functionality for OEM applications. OEM-ready Raman spectrometers for 785, 830 & 1064nm help your speed to market.
Wasatch Photonics has built an experienced team that understands the needs of OEM customers, and a spectrometer bench that exceeds them. Wasatch OEM Raman spectrometers are robust, compact, and easy to integrate, whilst delivering the same outstanding sensitivity and SNR of the standard spectrometers. The optical bench is designed in transmission with diffraction-limited optics, and remains aligned over temperature and at every wavelength to allow intensity matching to <10% across the spectrum. Consistency is key when you’re designing a product to be built in the thousands, and Wasatch delivers – in performance, in expertise, and in the quality of service.
Wasatch Photonics’ Raman OEM spectrometers are designed to deliver high sensitivity, robustness, and reproducibility in a compact, portable footprint. The modular design allows for customisation of wavelength, f-number, optical coupling, slit size, and detector, ensuring optimal performance for specific needs. With features like high numerical aperture (NA) optical design, scientific-grade detectors, and open-source software, Wasatch Photonics’ Raman spectrometers provide reliable and precise data collection for researchers and instrument manufacturers.
Key Features
| WP785 OEM | WP 830 OEM | WP1064 OEM | ||
| OPTICAL SPECIFICATIONS | WAVENUMBER RANGE | 200 – 2100 cm-1 | 270 – 2400 cm-1 | 200 – 2500 cm-1 |
| BLOCKING/SORTING FILTER | Options available, depending upon application | |||
| RESOLUTION 25 UM SLIT | 8cm-1 | 9cm-1 | 8cm-1 | |
| FIBER PORT | SMA 905 spectrometer input | |||
| LASER WAVELENGTH | 785nm (optional) | 830nm (optional) | 1064nm (optional) | |
| LASER TYPE | 100mW single-mode or 450mW multimode (optional) | 450mW multimode (optional) | ||
| WORKING DISTANCE | 22 mm (fully integrated model with laser & sampling optics) | |||
| LASER SPOT SIZE | 60μm (single-mode laser) / 120μm (multimode laser) | 120μm (with optional multimode laser) | ||
| SIZE | 9.7 x 10.9 x 4.9 cm (spectrometer or spectrometer + laser module) 16.4 x 10.9 x 4.9 cm (fully integrated system module) | 16.3 x 15.1 x 4.4 cm (spectrometer or spectrometer + laser module) 22.5 x 15.1 x 4.4 cm (fully integrated system module) | ||
| DETECTOR SPECIFICATIONS | ACTIVE PIXELS | 1024 | 1024 | 512 |
| INTEGRATION PERIOD RANGE | 3 ms – 60 s | 1 ms – 60 s | ||
| OPTIONAL REGULATED DETECTOR | 10 ± 0.2°C | -15°C ± 0.2°C | ||
| SYSTEM OPERATING TEMPERATURE RANGE | 0°C to 40°C, non-condensing | |||
| DATA INTERFACE | USB 2.0 Type B receptacle | |||
| SOFTWARE | ENLIGHTEN™ operating software & drivers | |||
Wasatch Photonics’ OEM Raman spectrometers stand out from competitors due to their exceptional sensitivity and high throughput, delivering superior spectra in less time. These spectrometers are robust and reproducible, ensuring reliable results in diverse environments such as labs, fields, and hospitals. Wasatch Photonics offers more configurations than any other provider, tailoring solutions to specific needs through their expertise and Raman-specific software tools, which provide full data transparency and control over data analysis.
Their commitment to customer satisfaction is evident in their responsive approach, listening to and addressing customer needs to deliver the best possible solutions. The transmission optical bench, designed with diffraction-limited optics, achieves an optimal balance of throughput and resolution across the fingerprint range, maintaining stable alignment even in harsh conditions. This makes their spectrometers ideal for high-volume production and real-world deployment.
Wasatch Photonics’ experience as an OEM partner ensures that their spectrometers are not only compact and easy to integrate but also maintain the outstanding sensitivity of their standard laboratory instruments. Their focus on consistency, reliability, and value, combined with their high-performance products and quality service, makes them a preferred choice for OEM customers.
