The THERMASTER is specifically engineered to control and ensure substrate surface temperature during in vitro solar testing, adhering to various standards. It is fully compatible with PMMA substrates molded HD6 and sandblasted SB6.
The metal support, with the substrate on top, maintains temperature by inertia during the weighing and application stages, which take less than 2 minutes.
The THERMASTER has been specifically designed to control and guarantee substrate surface temperature during the in vitro solar testing process, in order to comply with the various standards.
Fully suitable for PMMA substrates molded HD6 and sandblasted SB6 the metal support (with the substrate on top) is used to maintain temperature by inertia during the weighing and application stages (less than 2 minutes).
Directions of use

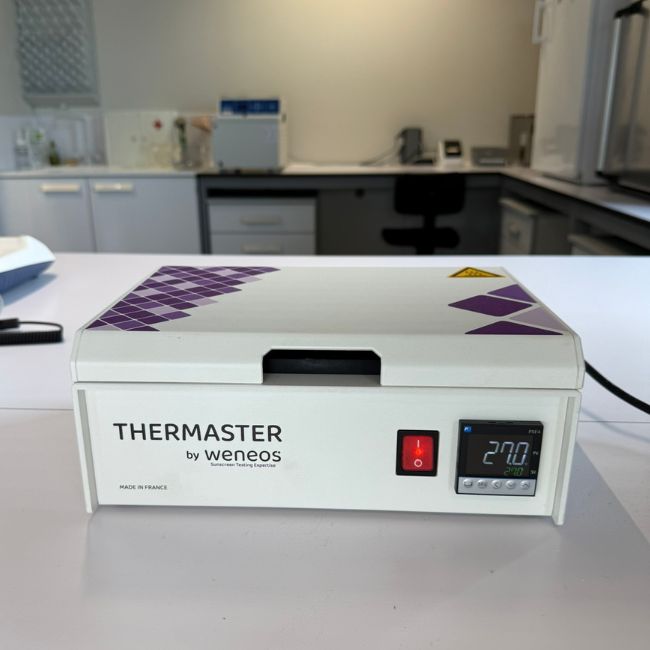

The THERMASTER developed by WENEOS is an easy-to-use thermal enclosure that maintains the substrate surface temperature throughout an in vitro solar test:
| Technical Information | THERMASTER Specifications |
| Dimensions | W: 300 mm x D: 210 mm x H: 120 mm |
| Weight | 2.3 kg |
| Termperature | • Accuracy: 0.1 °C • Operating range: Ambient – 45°C (safety limit at 50°C max) |
| Location | 9 locations with metal gondolas |
| Compliance | • ISO 23675:2024 – SPF in vitro • ISO 23698:2024 – HDRS • ISO 24443:2021 – UVAPF in vitro • FDA monograph 2011 – Broad Spectrum • Boots Star Rating system 2011 – UVA/UVB ratio |
| Security | • 2014/30/EU Electromagnetic Compatibility Directive (EMC), • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS), • 2011/35/EU Low-voltage Directive, • Harminized standards (EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 62061) |
| Power | 100-240 VAC / 50-60 Hz |
| IP class | IP42 |
| Condition of use | • Temperature : [5° – 45°C] • Humidity: [10% – 80%] non-condensing |
