Motion hexapods are designed to provide dynamic motion. Supporting payload capacities of up to 6 tonnes and providing accelerations of up to 1g, they can provide high precision trajectory tracking. They are often used for motion simulation applications as well as for the testing of sensors and antennae in the aerospace and automotive fields.
Hexapod Name | Applications | Payload | Linear travel range | Acceleration | Size in Mid Position | Linear travel range & Angular travel range | Specifications & Videos |
HEGOA
|
| 50kg | 800 mm/s² | 0.2 m/s | 0.42 m | ? ± 23° | |

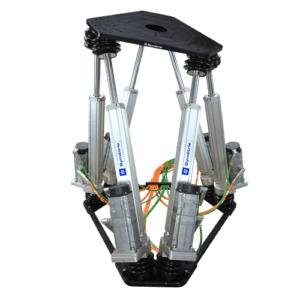

NOTUS
|
| 100 kg (NOTUS V) or 200 kg (NOTUS P) | 1 g | 1.2 m/s | 1.1 m | ± 250 mm ± 25° | |

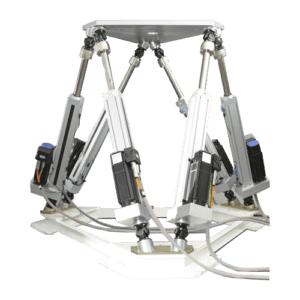

MISTRAL
|
| 1 tonnes | 1 g | 1 m/s (2 m/s in option) | 0.5 mm | ± 460 mm ± 30° | |

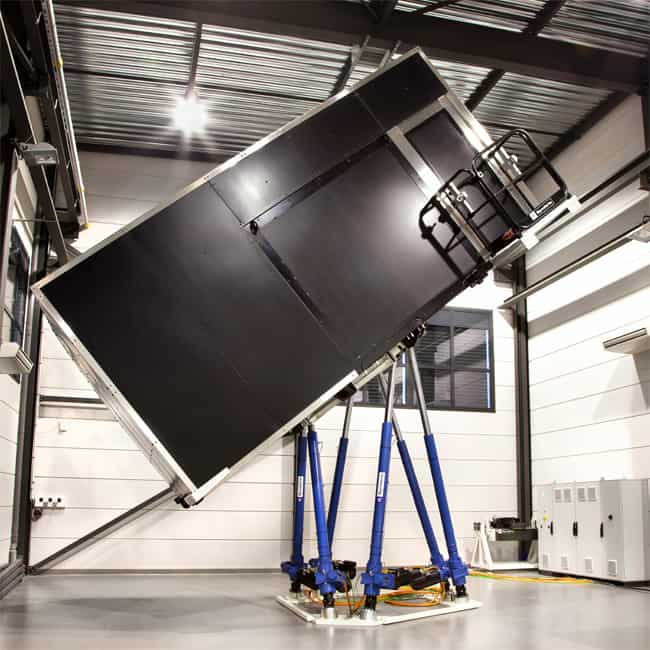

SIROCCO
|
| 2 tonnes | 6000 mm/s² | 2500 mm/s | 2.8 m | ± 600 mm ± 40° | |
AQUILON
|
| 6 tonnes | 7 m/s² | 1.8 m/s | 3.5 m | ± 800 mm ± 40° |
