Positioning hexapods are specifically designed for precise alignment and handling requirements. They utilising high accuracy absolute encoders and for the accurate positioning of payloads up to 1500 kg.
Applications include the qualification of optical instrumentation, mirror adjustment on satellites and telescopes, metrology and inspection of components or devices, and many more aside.
| Name | Applications | Payload | Linear Travel Range | Angular Travel Range | Linear / Angular Resolution | Height
| Specifications & Videos |

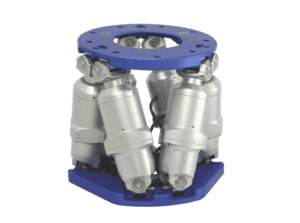

SOLANO
|
| 5 kg | ± 18 mm | ± 10° | 0.1 µm / 2.5 µrad | 104 mm | |
MAUKA
|
| 5 kg | ± 5 mm | ± 8° | 0.5 µm / 5 µrad | 198 mm | |
BORA
|
| 10 kg | ± 20 mm | ± 15° | 0.1 µm / 2 µrad | 145 mm | |

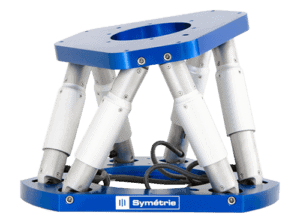

PUNA
|
| 25 kg | ± 30 mm | ± 20° | 0.5 µm / 5 µrad | 200 mm |
| Name | Applications | Payload | Linear Travel Range | Angular Travel Range | Linear / Angular Resolution | Height | Specifications |

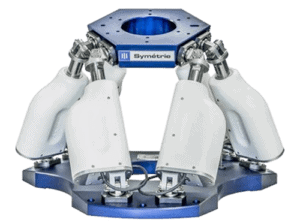

BREVA
|
| 200 kg | ± 75 mm | ± 22° | 0.5 µm / 2.5 µrad | 350 mm | |

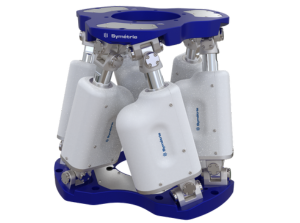

BREVA S
|
| 200 kg | ± 60 mm | ± 30° | 0.25 µm / 1.5 µrad | 330 mm | |
ZONDA
|
| 400 kg | ± 200 mm | ± 20° | 0.1 µm / 0.5 µrad | 360 mm / 640 mm | |

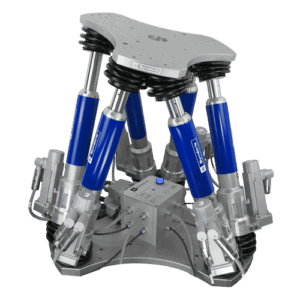

SIRIUS
|
| 200 kg | ± 150 mm | ± 20° | 5 µm / 10 µrad | 750 mm | Datasheet |
KUBAN
|
| 500 kg | ± 75 mm | ± 10° | 0.1 µm / 1.5 µrad | 600 mm | Datasheet |

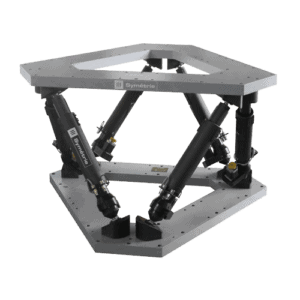

JORAN
|
| 1 500 kg | ± 170 mm | ± 18° | 0.1 µm / 0.5 µrad | 750 mm | |

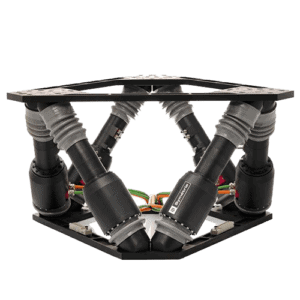

SURES
|
| 500 kg | ± 8 mm | ± 1° | 0.1 µm / 1.5 µrad | 360 mm | Datasheet |
